Detailed Product Overview
These pull rod lengths are for all Carter D-10/SD-10 and S-10, Pro Models with the pedals starting in the standard position.
DO NOT try to open the hook to make it easier to put on the pull pin or it will break and you will need to purchase a replacement.
Please measure and order carefully. Once your order has been placed, we cannot make changes or give refunds or exchanges.
12 STRING

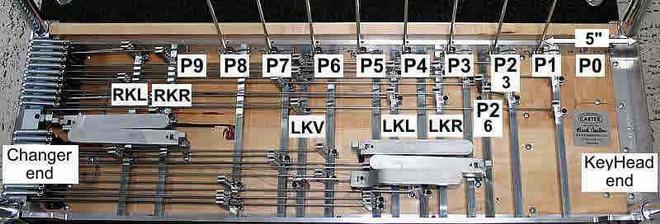

They will also work for 12-String models on which the first pedal rod is 6″ from the Key Head (left-hand) end plate.

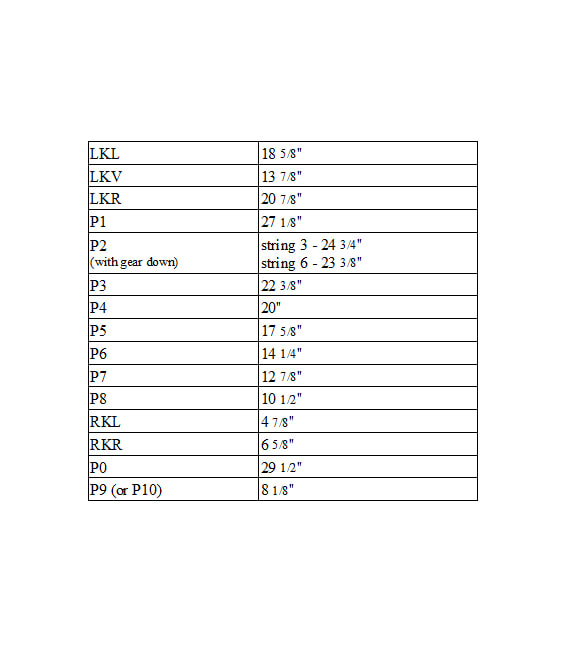

If the first pedal rod on your 12-string is 5″ from the Key Head (left-hand) end plate, add 1 inch to the measurements shown below. You must put “all pull rods +1″ for S-12” in the comments section of the order form or you will be sent the wrong parts.
